Flange Bolts Chart - Web class 150 flanges bolting pattern & bolt sizes. The lengths of the machine bolts are measured from under the head to the top of the bolt. D1 = diameter of bolt circle. 75 50 4 x 11. Web the following is chart data for ansi b16.5 flange dimensional data size table for 1/2 to 2 1/2 inches. Web in this article, i have covered flange bolt dimension chart and stud size dimensions for stud and bolt used in piping. Flange dimensions are determined by the pipe size and the pressure class required for the application. The size guide below lists accurate sizing information about the selected flange’s diameter and length, as well as the required wrench size and torque patterns. D2 = diameter of raised face. Are you trying to figure out how many bolts you need to flange up the project you are working on?

Bolt reference charts for asme b16.5 flanges [email protected] www.traegerbrothers.com. Web the following ansi flange charts & flange tables provide flange dimensions including, flange overall diameters, number of bolts and bolt size for the most common sizes of ansi flanges for ratings from ansi 150 through to ansi 1500. 90 60 4 x 14. 90 60 4 x 14. Web class 150 flanges bolting pattern & bolt sizes. Both standards provide detailed guidelines for flanges’ dimensions, materials, testing procedures, and associated bolts. Web the following chart shows the quantity and size of bolts or studs require for a particular flange size and class. 75 50 4 x 11. Web flange dimensions charts listed by nps and by flange class. Set up your email address to receive your invoices.

Bolt Chart For 150 Flanges

Class 900 number of bolts. In no event will south coast industrial metals or any of its affiliates be liable for any damages arising from the use of the information included in this document or that it is suitable for the ‘applications’ noted. Web if you are looking for a 150#, 300#, & 600# flange stud bolt chart, we got.

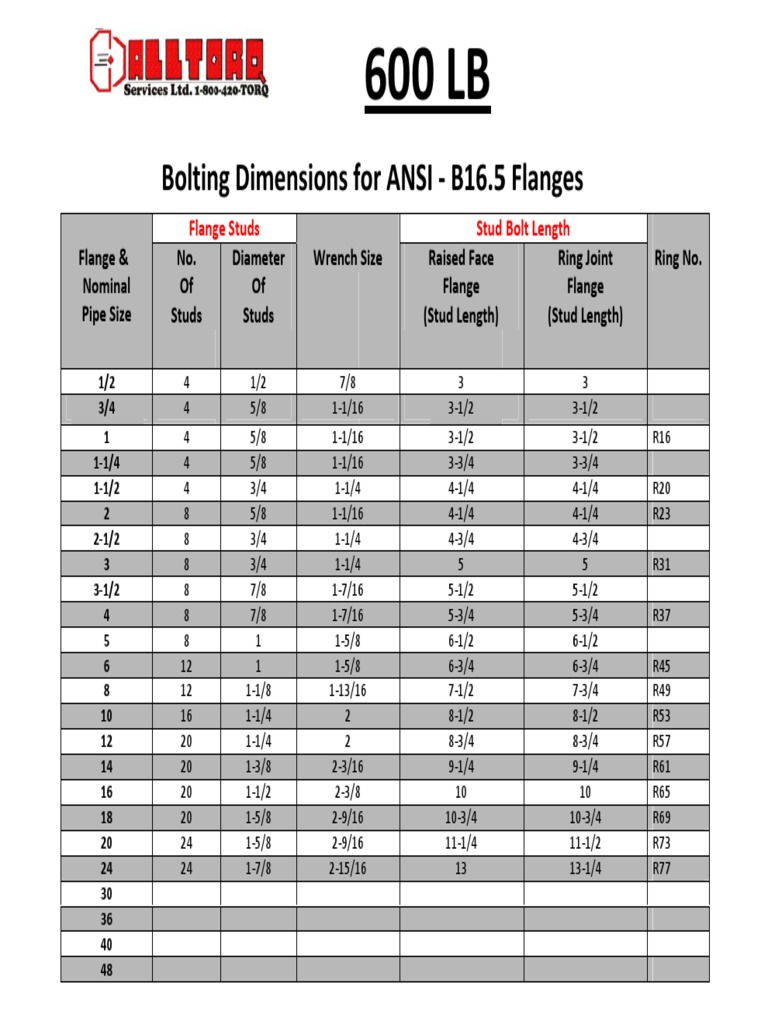

600FlangeBoltChart1.pdf Plumbing Mechanical Engineering

Bolt reference charts for asme b16.5 flanges [email protected] www.traegerbrothers.com. Web flange dimensions are covered in the following tables of asme b16.5 2020: Set up your email address to receive your invoices. Lysis and job buyer tracking. Web if you are looking for a 150#, 300#, & 600# flange stud bolt chart, we got you covered.

Ansi Flange Bolt Length Table

Web of flange diameter of bolt circle diameter of bolt holes number of bolts diameter of bolts raised face 0.06 in ring joint 1/2 4 3/4 3 1/4 7/8 4 3/4 4 1/4 4 1/4. The length of the stud bolt does not include the height of the points. Web if you are looking for a 150#, 300#, & 600#.

Technical Info Flange BoltUp Charts

Flange dimensions are determined by the pipe size and the pressure class required for the application. Just enter the flange size, class, and type and the app instantly populates the correct values from the flange bolt size chart and the flange torque sequence chart, along with wrench size. Regardless if its b7 studs , b8 studs, or teflon coated studs..

600 Flange Bolt Chart

Web if you are looking for a 150#, 300#, & 600# flange stud bolt chart, we got you covered. B = thickness of flange. Dn = diameter nominal (size) a = flange. Rack your orders and shipments.have reports sent right to your inbox: The size guide below lists accurate sizing information about the selected flange’s diameter and length, as well.

Printable Flange Size Chart

Web explore the comprehensive flange bolting chart at texas flange. Web the following is chart data for ansi b16.5 flange dimensional data size table for 1/2 to 2 1/2 inches. Web the following ansi flange charts & flange tables provide flange dimensions including, flange overall diameters, number of bolts and bolt size for the most common sizes of ansi flanges.

Flange Bolting Chart ASME B16.5

The lengths of the machine bolts are measured from under the head to the top of the bolt. Just enter the flange size, class, and type and the app instantly populates the correct values from the flange bolt size chart and the flange torque sequence chart, along with wrench size. In no event will south coast industrial metals or any.

Distinguishing the Different Types of International Flanges

Web the following ansi flange charts & flange tables provide flange dimensions including, flange overall diameters, number of bolts and bolt size for the most common sizes of ansi flanges for ratings from ansi 150 through to ansi 1500. Web class 150 flanges bolting pattern & bolt sizes. B = thickness of flange. Web of flange diameter of bolt circle.

Flange Bolt Dimensions Chart and Stud Size in mm

Web the following chart shows the quantity and size of bolts or studs require for a particular flange size and class. Rack your orders and shipments.have reports sent right to your inbox: Web flange dimensions are covered in the following tables of asme b16.5 2020: 90 60 4 x 14. Both standards provide detailed guidelines for flanges’ dimensions, materials, testing.

flange and bolt chart

Limitation of liability and disclaimer of warranty: Web flange reference chart 2019.xlsx. In no event will south coast industrial metals or any of its affiliates be liable for any damages arising from the use of the information included in this document or that it is suitable for the ‘applications’ noted. Flange dimensions are determined by the pipe size and the.

Web 300# Flange Bolt Chart With Length & Diameter Of Studs, Pipe Size, And Wrench Size.

Web asme b16.5 covers flanges up to 24 inches nominal pipe size, while b16.47 extends the range up to 60 inches. Web of flange diameter of bolt circle diameter of bolt holes number of bolts diameter of bolts raised face 0.06 in ring joint 1/2 4 3/4 3 1/4 7/8 4 3/4 4 1/4 4 1/4. Lysis and job buyer tracking. Set up your email address to receive your invoices.

Web Flange Dimensions Charts Listed By Nps And By Flange Class.

When ordering, allow for the total length required for all components. Bolt reference charts for asme b16.5 flanges [email protected] www.traegerbrothers.com. Regardless if its b7 studs , b8 studs, or teflon coated studs. Web asme b16.5 flanges length of stud bolts [note (1)] nps outside diameter of flange diameter of bolt circle diameter of bolt holes number of bolts diameter of bolts raised face 0.06 in ring.

The Lengths Of The Machine Bolts Are Measured From Under The Head To The Top Of The Bolt.

Both standards provide detailed guidelines for flanges’ dimensions, materials, testing procedures, and associated bolts. Web explore the comprehensive flange bolting chart at texas flange. Access essential information for secure and reliable connections in your piping projects. 1 inch = 25.4 mm

90 60 4 X 14.

Web in this article, i have covered flange bolt dimension chart and stud size dimensions for stud and bolt used in piping. Normal pipe size (inches) rf height 1/2 3/4 1 1 1/4. Web the following chart shows the quantity and size of bolts or studs require for a particular flange size and class. 75 50 4 x 11.
